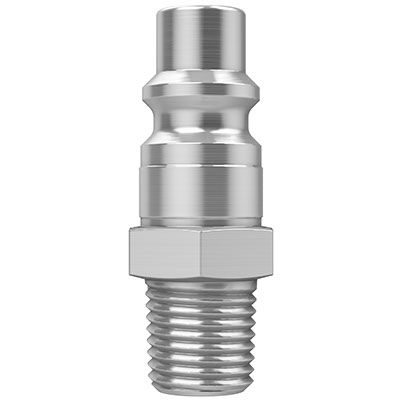

NIPPLE M08S 38 NPT

NIPPLE M08S 38 NPT

41 l/s · 16 bar · 100 °C · -20 °C

제품 정보 확인하기

제품 일련 번호를 입력하고 유지보수 등 필요한 정보를 받아보세요.

image-0
Product description

Chicago Pneumatic nipples serve as connectors between hoses, pipes, and other pneumatic components. They allow air to flow smoothly within the system.

This product is a part of 에어 라인 악세서리

이 제품은 다음 국가에서는 판매되지 않습니다: 베네수엘라

식별

부품 번호6158105750
Technical description
Metric
Imperial
Design and functions

  • 주 재료 유형

    Hardened zinc plated steel

Power

  • 최대 주변 작동 온도

    100 °C

  • Min Ambient Operating Temperature

    -20 °C

Air information

  • 최대 동적 에어 작동 압력

    16 bar

Max air flow
Max dynamic air working pressure
